 PDF2DWG Details

This standalone tool is used to convert PDF files directly to DWG or DXF file formats used by CAD applications.  It runs in Windows and does not require the presence of any CAD application.  Attempts to screen capture the PDF results in a low resolution image that doesn't plot well and can't be snapped to.  Using our conversion tool, if the PDF file contains vector geometry, if will result in highly usable polylines in CAD.  If the PDF contains text annotations, they will become text objects.  Images embedded in the PDF are extracted and placed as IMAGE references.

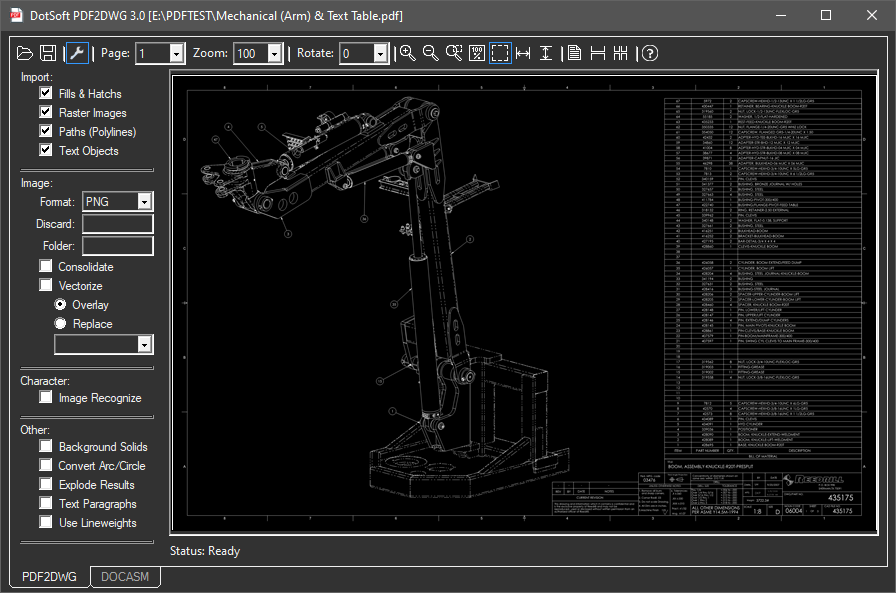

Details: A single dialog controls the process of converting PDF files.

Function Description
Open: Use a standard Windows open dialog to select your PDF file.
Preview: The preview window lets you visually confirm the contents of the selected page before processing.  You can zoom in to examine details or zoom extents for the big picture.
Pages: Since PDFs can contain multiple pages, you can browse and select pages with a single click before processing.
Process: Even large files process in seconds, with a visual status bar at the bottom.

PDF2DWG -vs- AutoCAD Options:

Before you consider using the options built into AutoCAD, consider the problems you will encounter.

Option Description
OLE: You can only insert the first page, the results are extremely grainy, and you can't snap to or edit the results.
Underlay: You can only view/plot the pages, you cannot modify the results.  You can't edit text, clean up parts of images or move path vertices.  While you can snap to path vertices, we think you have better things to do than trace over PDFs all day.

Summary:
  • Visual preview before conversion.
  • Handles multiple page files with ease.
  • Generates paths as polylines for smaller file size.
  • Runs as 64bit application on 64bit OS.

Export Formats:
  • R13-2007 DWG (Drawing Format)
  • R13-2007 DXF  (Drawing Exchange Format)
    Newer CAD engines can read older drawing files.
Important Notes:  This product imports but does not convert PDF objects.

What appears as linework in a PDF may be a raster image.  During import they will remain as
raster images, they are not vectorized.  If your PDF came from a scanner, you have an image!
Sometimes high resolution scans look like vectors but they are not.  To check for yourself, open
the PDF in Adobe's free viewer and zoom to 800%+ to see the rough edges confirming an image.
What appears as Text in a PDF may be vectors or filled paths.  During import they will remain
as such, they are not converted to text objects.  To check for yourself, open the PDF in the
Adobe free viewer and use the find tool on what appears to be text.  If the viewer highlights
it, your results will be mtext objects.
PDF files are essentially plot files.  Do not purchase this application expecting it to do vector
character recognition or vectorization of raster images!

Product Support: Email Support Only

Product Eval: Available on Request.

Pricing:
Item Price PayPal Shopify Direct Description
Single License: $145 PayPal Button Shopify Button Order Form Button Covers a single computer.
Site License: $745 PayPal Button Shopify Button Order Form Button Covers all computers at a site (address).
Corporate License: $1495 PayPal Button Shopify Button Order Form Button Covers all computers in a corporation (multiple sites).
