There are dozens of new functions in ToolPac 7.0, along with many improvements to existing tools.
| Drawing | |
| Search: | Search quickly through multiple drawings for specified word strings, while specifying which objects and tables to search. Because of the way strings are compressed in a dwg file, you can't use Windows Search. This tool utilizes the extremely fast ObjectDBX included in AutoCAD 2000 or higher which allows us to open drawings like a database, not inside the editor. Testing on an average machine (800mhz, IDE drive) on roughly 100 files totaling over 90mb returned the results in less than 30 seconds.
(Requires 2000 or higher) |
| Query Import: | Query from multiple drawings importing matching results into current drawing. Sometimes you want to bring in geometry from multiple drawing, based on locations and properties you specify. This tool can search through dozens or hundreds of drawings and very quickly bring the matching results into the current drawing.
(Requires 2000 or higher) |
| Repath: | Changes hardcoded image, xref, style, and shape paths in multiple drawings. Hardcoded paths can cause problems when a collection of drawings is moved to a different drive/path, or sent to another user. Once translation tables are established, they can saved to disk for later recall.
(Requires 2000 or higher) |
| Multiple DXF Import: | Insert multiple DXF files in one operation.
(Requires 2000 or higher) |
| Alternate Open Dialog: | Alternative file open dialog with multiple layouts and drawing properties. Tabs exist on all three layouts for a list, details, or history of previously opened drawings. Layouts: - Normal Preview with Details, a balance of list and preview/details.
- Large Preview no Details, preview is twice as wide and tall as usual.
- No Preview or Details, maximizes the list in the dialog.
(Requires 2000 or higher) |
| |
| Annotation | |
| Remove Mask: | Removes grouped masking images (and unnamed group) from a selection set of annotations. Complements the Annotation Mask tool introduced in ToolPac 6.0. |
| Case: | Changes the case of annotations to upper, lower, title, or sentence case. |
| Value Factor: | Add, Subtract, Multiply, or Divide Annotation Values by Value. |
| Decimals: | Change Numeric Decimal Places of multiple annotations. |
| Prefix/Suffix: | Adds Prefixes and Suffixes to annotations. |
| Surrounding: | Generate geometric shapes surrounding annotations.
|
| Other Improvements:- Incremental Fill improved with dialog and repeat option.
|
| |
Attribute | |
| Restore Default: | Restores selected Attributes back to ‘default’ value indefinitions. |
| Value Fill: | Fills the attribute of a selection set of blocks with a blockproperty (such as elevation). Including roundingoptions for numerical results. |
| Populate: | Populate existing insert attributes with lookup values from Excel spreadsheet or Access database. Take existing inserts with a single attribute that can belooked up in the database, and automatically fill in otherattributes based on attribute tag to field namerelations.
|
| |
Block | |
| Consolidate: | Processes a selection set and collects multiple inserts at the same insertion point and replaces them with a single block inheriting all like attributes. |
| Legend: | Creates a graphical legend of selected blocks with options of symbol, name, count, and description.
|
| Substitute: | Substitutes non-attributed blocks on existing inserts and preserves group. |

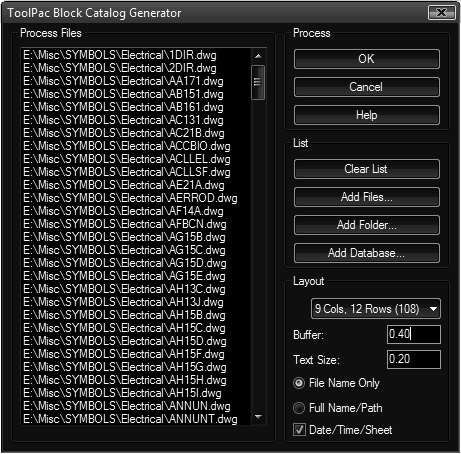

| Catalog Generator: | Builds ready to print sheets on multiple layout tabs. Options for 6, 12, 24, 54, or 108 symbols per page. Since the results are multiple layouts, its ready to plot (print) all sheets using AutoCAD. Since the actual symbol is inserted, you get maximum resolution on your output regardless of the size of the symbols.
|
| Place: | Generates block inserts with attributes directly from Excel spreadsheet or Access database. Once you choose a data source, you can choose insertion parameters from the fields of the data source. Or in the case of fields like scale and rotation, you can type them in. You can even place multiple block definitions by using an field in the data source for the blockname. All attributes with tags matching field names in the data source are automatically filled in.
|
| Other Improvements:- Block Data Import improved with ability to lookup existing insert handles based on a key attribute field.
- Block Make Anonymous improved with ability to specify insertion point instead of bounding lower left corner.
- Block Definition Cleanup improved with lineweight option.
- Block Explode to Group improved with ability to handle blocks with attributes.
|
| |
Conversion | |
| Improvements:- Spline to Polyline conversion improved with arc option, more natural looking approximations with a fraction of the points.
|
| |
Dimension | |
| Ordinate Update: | Updates the coordinate value of a selection set of ordinate dimensions with prefix/suffix and rounding options. When you move or copy ordinate dimensions in AutoCAD you can't update them, even with DIM UPD.
|
| Style Report: | Generates a detailed html table report showing the differences between current loaded styles. |
| Quick Angular: | Generates an angular dimension in two segment picks, even for angles > 180. |
| |
Display | |
| Floating Pick List: | Window allowing rapid single click switches. Dialog remains floating onscreen (like object properties) and allows quick changes of layer freeze or on/off, layer states, layouts, named views, etc.- Single pick (without accessing layer dialog) to turn layers on/off or freeze/thaw.
- Single pick to set a layer state current.
- Single pick to set a layout current (without scrolling over like the tab).
- Single pick to set a named view current.
|
| |
Draw | |
| Slot: | Draws a slot (or parking lot median). |
| Line byDirection: | Generates a line segment relative to another based on these options:- Angle Left creates a line at angle left and distance.
- Angle Right creates a line at angle right and distance.
- Deflection Left creates a line at angle deflecting left and distance.
- Deflection Right creates a line at angle deflecting right and distance.
- Azimuth creates a line at a north azimuth and distance.
- Bearing creates a line at a bearing and distance.
|
| Other Improvements:- Separate settings storage for label area/perimeter instead of shared settings.
- Label Incrementing improved with ability to label a selection set of objects (at their centroid) or an array on a grid.
- Draw Masking Image improved with automatic float of boundary and option to bind with mask.
- Added vertical exaggeration option to Label XY Slope.
|
| |
Groups | |
| Generate: | Creates multiple anonymous groups of objects sharing a common insertion point. |
| Remove: | Removes all or selected groups from a drawing. Choose the list of all or only unused groups in the drawing. |
| Details: | Displays rapid details about the group of a selected object (name, description, named/unnamed, selectable) and highlights all group members. |
| Selectable: | Quickly toggles the selectability of a group by picking one of its objects. |
| Explode: | Quickly explodes group by picking one of its objects. |
| Quick Make: | Quickly creates an anonymous group from selected objects. |
| Backup: | Saves group information into objects before wblock/insert operation. Using the backup and restore tool (below) you will not lose group information when copy/moving objects to other drawings. |
| Restore: | Restores group information from objects (with save info above) after wblock/insert operation. |
| |
| Inquiry | |
| Profile Properties: | Tabular report lists settings found in Preferences dialog. |
| Other Improvements:- Grid List Improved with resizable form and saves size/position. Also supports MapR6 MPOLYGON object.
|
| |
| Layer | |
| Command Layers: | Eliminate the frustration of having to set a layer current before beginning a command. Simply enable the system and designate the layer to match the commands, such as layer DIM for all commands that begin with "DIM". When you begin a command the designated layer is set current, and when the command completes the previous current layer is restored. Works by reacting to the beginning (and end) of all commands, does not redefine any commands! - Editor dialog allows easy creation and changes to command layer setup.
- System On option loads the default file and turns on command layers.
- System Off option turns off command layers.
|
| State Manager: | Layer State Manager with extended abilities over AutoCAD Layer Dialog.
Features: - Set layer state current
- Save current state to a name
- Import from:
- AutoCAD *.LAS
- ToolPac *.LSF
- Express/SurvCADD *.LAY
- Export to AutoCAD LAS
- Convert LMAN states inside the current drawing, with an option to remove the LMAN state after completion.
- Compare multiple states to quickly find the differences.
- Multiple state editing tools.
- Delete multiple states in one click.
- Rename a state.
- Change the case of the state name to upper, lower, title, or sentence.
- Find & Replace fragments of state names.
- Add a prefix and/or suffix to state names.
- Rename states sequentially like STATE001, STATE002, etc.
- Plot or Preview the current layout tab with multiple states. Select your layer states and the sheets come rolling out!
|
| Filter Delete: | Quickly removes all or selected layer filters in a drawing. |
| |
Layout | |
| Manager: | Controls layouts including ordering, editing, renaming, creation, and plotting tools.
Features: - Easily reorder by moving one or more tabs up and down in the list.
- Delete multiple tabs in one click.
- Change the case of selected tabs to upper, lower, title, or sentence case.
- Find & Replace characters in layout names.
- Add a prefix and/or suffix to selected layouts.
- Rename layouts sequentially like LAYOUT001, LAYOUT002, etc.
- Create multiple new layouts in a single operation with a base name while inserting a title block in each.
- Make multiple copies of layouts.
- Lock or unlock all the viewports in selected layouts.
- Change the Page Setup in multiple layouts.
- Plot or Preview Layouts in the correct order. Includes copy count and plot to file options.
- Quickly set PSLTSCALE to on or off in multiple layouts.
|
| List: | Displays a detailed report of all layouts in the drawing in a web browser ready to print. |
| Viewport Copy: | Copies selected viewports for subsequent pasting. |
| Viewport Paste: | Pastes copied viewports into current layout preserving layer settings and turns them on. |
| Other Improvements:- Layout Save to File improved with:
- 'Bind Insert Xrefs Before Export'
- 'Erase Off/Frozen Geometry'
- “Saveas R12 DXF’
- “Trim to Viewports & Project to Model Space”
|
| |
| Object | |
| Hyperlink Open: | Quickly opens hyperlinked documents in a previously selected set or as repeatedly picked. |
| Other Improvements:- Z-Order By Layer improved with ability to bypass assignment on previously assigned objects.
|
| |
| Polyline | |
| Segment Offset: | Offsets segments of picked polyline to separate lines. |
| Proportional Widen: | Creates left/right offsets along polylines, width increases along distance. Allows specification of beginning and ending width. |
| |
Symbol Manager | Improvements:- Make Symbol Slides improved with option to fill attributes with tag names.
- Added support for user variables USERR1-5 as scale factors.
- Added check for read only SDB files, grays out all but insert tiles.
|
| |
| Text | |
| Pad Spaces: | Pads user determined spaces into a selection set of text. |
| |
| XRef | |
| Open: | Opens a xref by picking it in the drawing, or activates it if already open. |
| |
Miscellaneous | |
| AutoLOG: | Comprehensive plot logging system. If enabled, AutoLOG will pop up after you complete a plot allowing you to fill in the parameters you have predetermined. All prompt fields are controlled by initialization file you can optionally place on a server for all users to pull from. Includes an optional command for manual execution of plot logging routine and changing of settings.
|
| Other Improvements:- Check For Updates tool allows users to connect to our internet server for revised files at any time, bringing their system up to date with all patches in one click.
- Many separate text, mtext, attribute tools consolidated into single annotation menu processing tool. Eliminates the need to know what type of object an annotation is.
- Configuration dialog changed to tabbed dialog with more (and better organized) settings.
|
