Postby twdotson » Tue May 12, 2015 7:22 pm

Quickly create symbolic linetypes (arrows, bullets, numbers, shapes, etc) or text based linetypes based on characters you enter.


Lincoln
Posts: 51
Joined: Tue Apr 07, 2015 6:27 pm

Re: Linetype Manager Dialog

Postby Lincoln » Thu May 28, 2015 1:58 pm

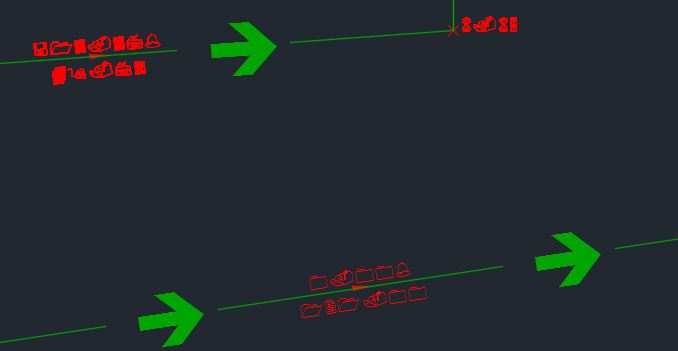

I was made a linetype with flow arrows for my feature lines..and it has done this to the labels:


twdotson
Site Admin
Posts: 167
Joined: Thu Mar 19, 2015 9:35 pm
Location: Flemingsburg, KY

Re: Linetype Manager Dialog

Postby twdotson » Sat May 30, 2015 5:56 pm

Since the design labels affect regen speed, we were simply getting a style. It appears that in creating the WINGDINGS3 style for the linetype the design labels were picking that up. We now are creating our own style it overrides. Should be fixed with the next update.

Lincoln
Posts: 51
Joined: Tue Apr 07, 2015 6:27 pm

Re: Linetype Manager Dialog

Postby Lincoln » Sun May 31, 2015 1:25 pm

The labels will only come in at a height of 10 now with the update. Can you test this?

twdotson
Site Admin
Posts: 167
Joined: Thu Mar 19, 2015 9:35 pm
Location: Flemingsburg, KY

Re: Linetype Manager Dialog

Postby twdotson » Sun May 31, 2015 2:14 pm

That is (was) the case, we pushed a revision, run Check for Updates.
